CRYSTAL FILTERS

Products > Crystal Filters

CRYSTAL FILTER CAPABILITIES

Frequency range: 100 KHz – 250 MHz

Bandwidth: 0.001% - 2.5%

Sections: 2 to 6+

Monolithic + discrete solutions available

Very sharp shape factor: up to 1.03:1

Phase & Amplitude Matching

Low 3rd Order I/M

Phase & Amplitude Matching

SMT (hermetic + non hermetic), connectorized, thru-hole package configurations

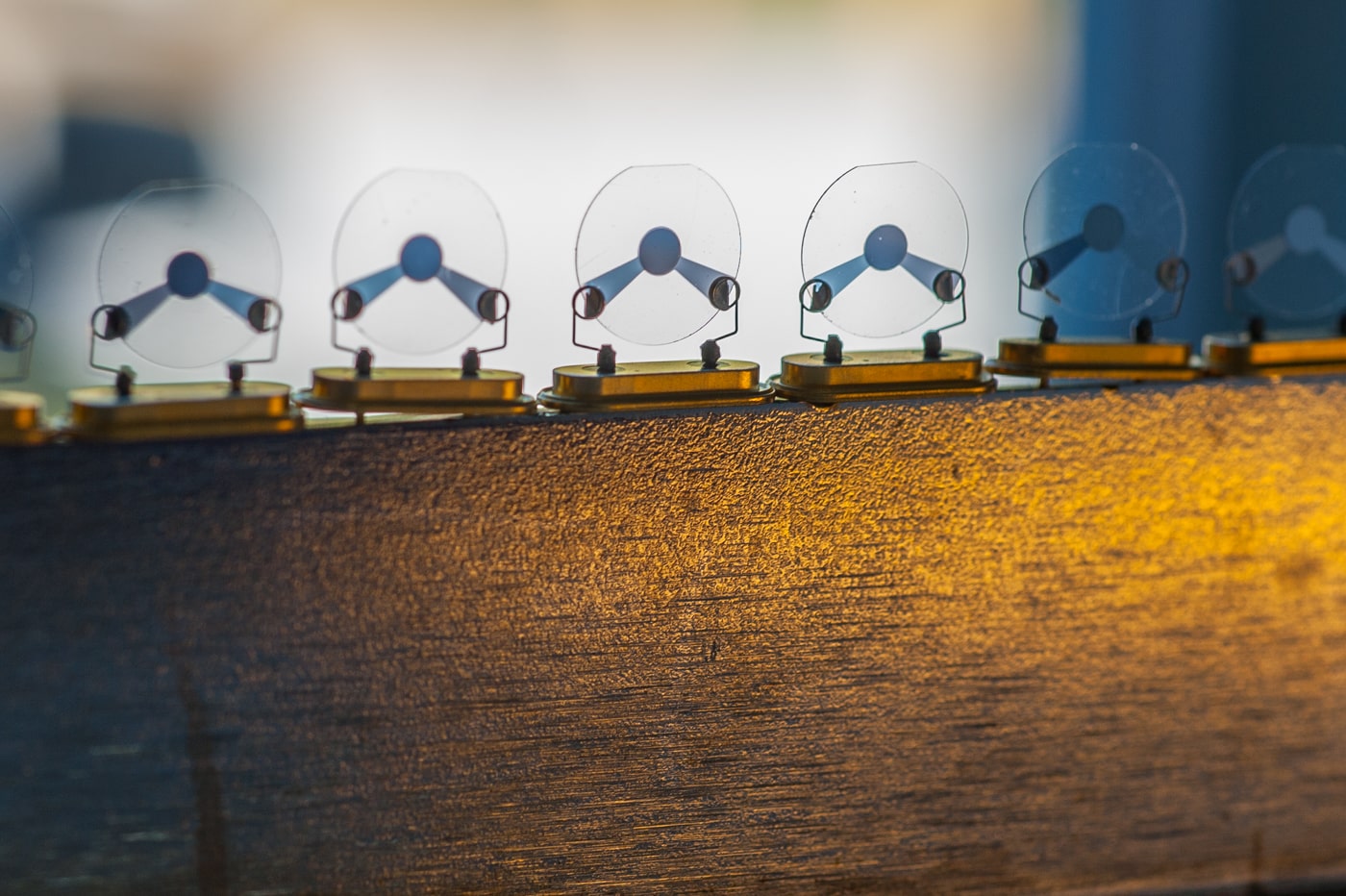

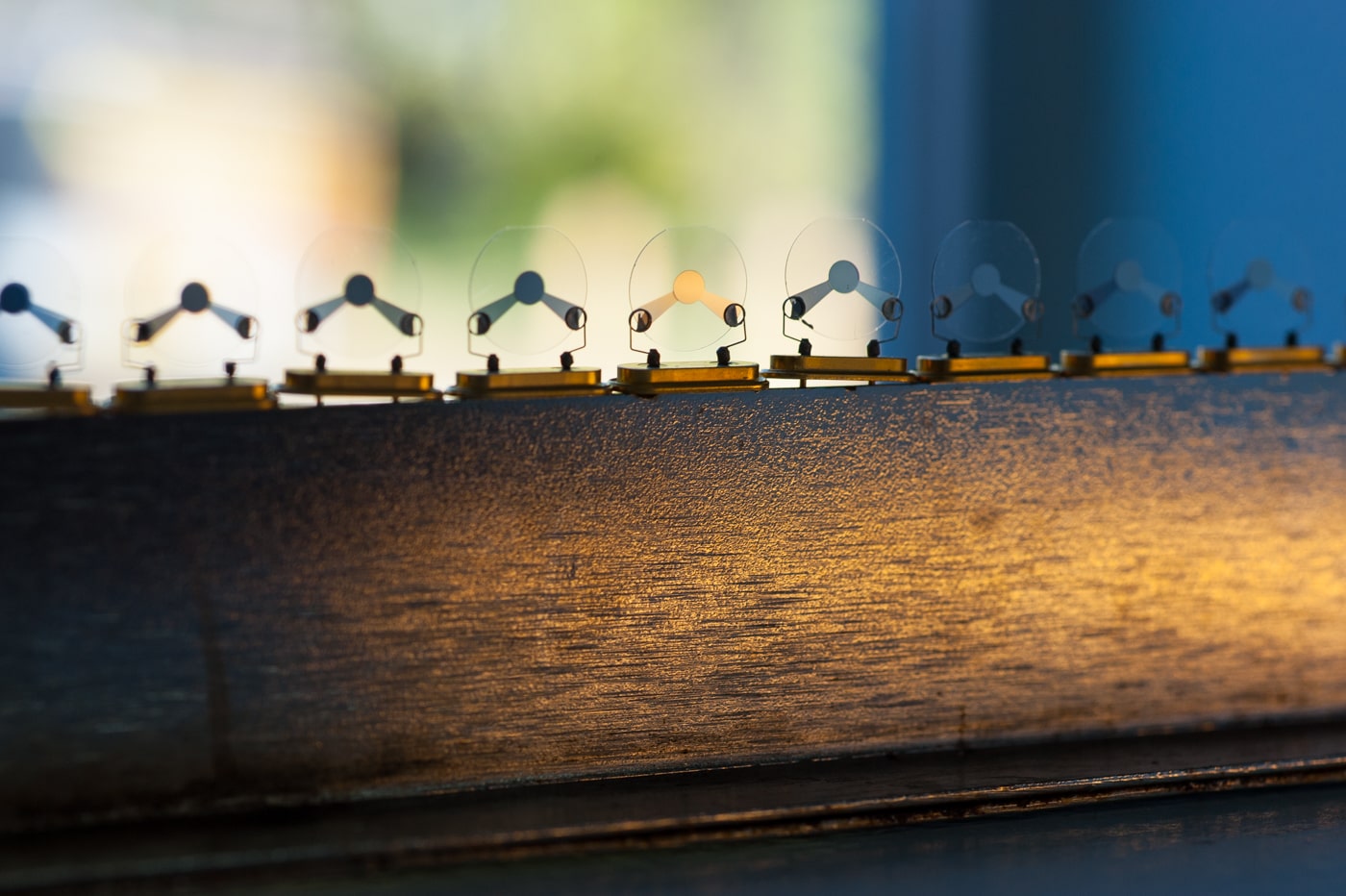

In-house crystal manufacturing capabilities

NIC's product designs are highly customizable and allow for customers to define package / connector configuration, hermeticity, and application specific compatibility (military, space, etc)

NIC'S SIGNATURE AND LATEST CRYSTAL FILTERS

NAME	TYPE	CENTER/CUT-OFF FREQ	BANDWIDTH	PACKAGE CONFIG	PACKAGE DIMENSIONS	FEATURES	DETAILS & DATASHEET
200 MHz Crystal Filter	Bandpass	200 MHz	50 KHz	SMT Hermetic	1.00 x 0.500 x 0.28 + tabs	High ultimate rejection of > 75 dB	VIEW	REQUEST	SHARE
10 MHz Narrow-Band Crystal Filter	Bandpass	10 MHz	50 Hz Typ	SMA Hermetic	2.40 x 1.00 x 1.00 + SMA/pins	Narrow Bandwidth (50Hz)	VIEW	REQUEST	SHARE

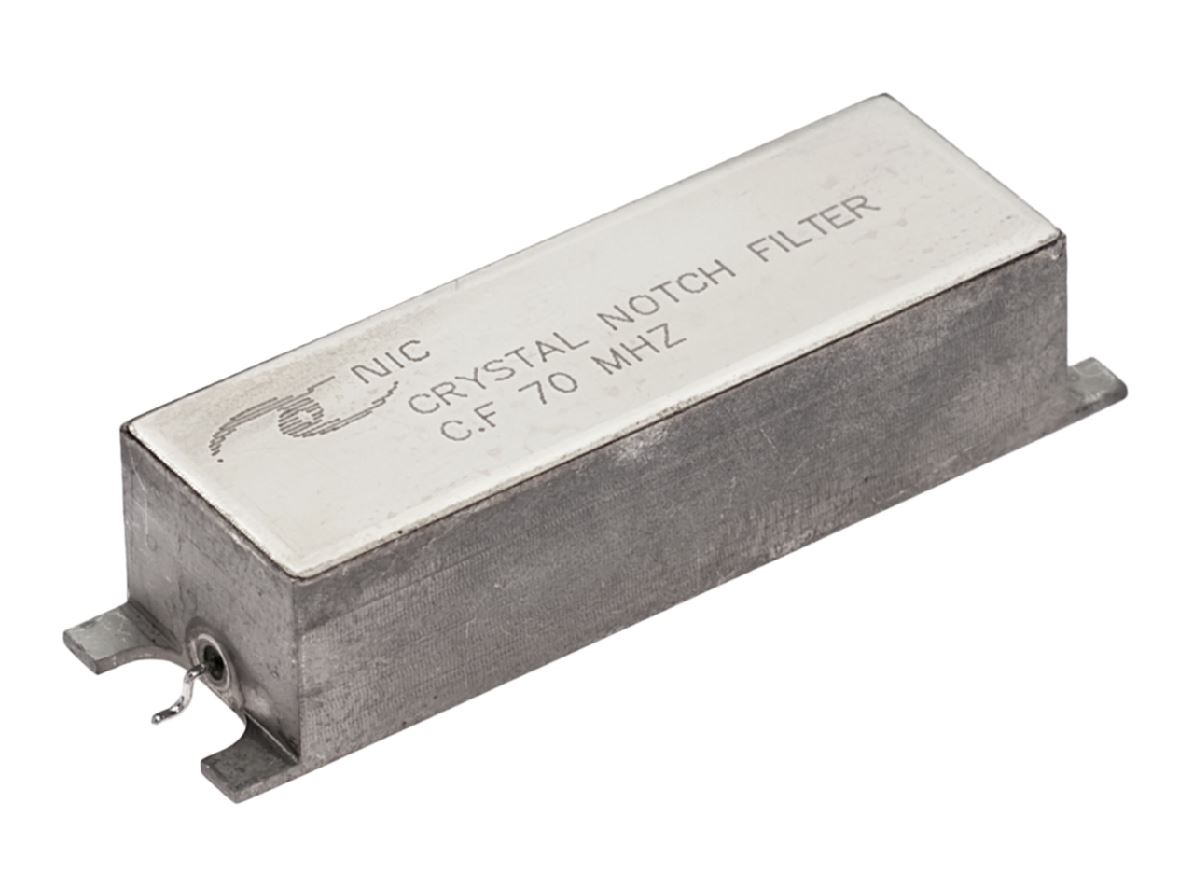

VHF Crystal Notch filter	Bandpass	68-72 MHz	100 KHz	SMT Hermetic	1.55 x 0.65 x 0.50 + tabs	Narrow Notch Bandwidth	VIEW	REQUEST	SHARE
