| NAME | TYPE | FREQ RANGE | BANDWIDTH | PACKAGE CONFIG | PACKAGE DIMENSIONS | FEATURES | DETAILS & DATASHEET | ||
|---|---|---|---|---|---|---|---|---|---|
| WiMax Duplexer | Duplexer | Band1: 3400-3500 MHz Band2: 3500-3600 MHZ | Band1: 40 MHz Band2: 40 MHz | SMA | 4.0 x 3.0 x 1.1 inches + SMA | 100 MHz Channel separation | VIEW | REQUEST | SHARE |

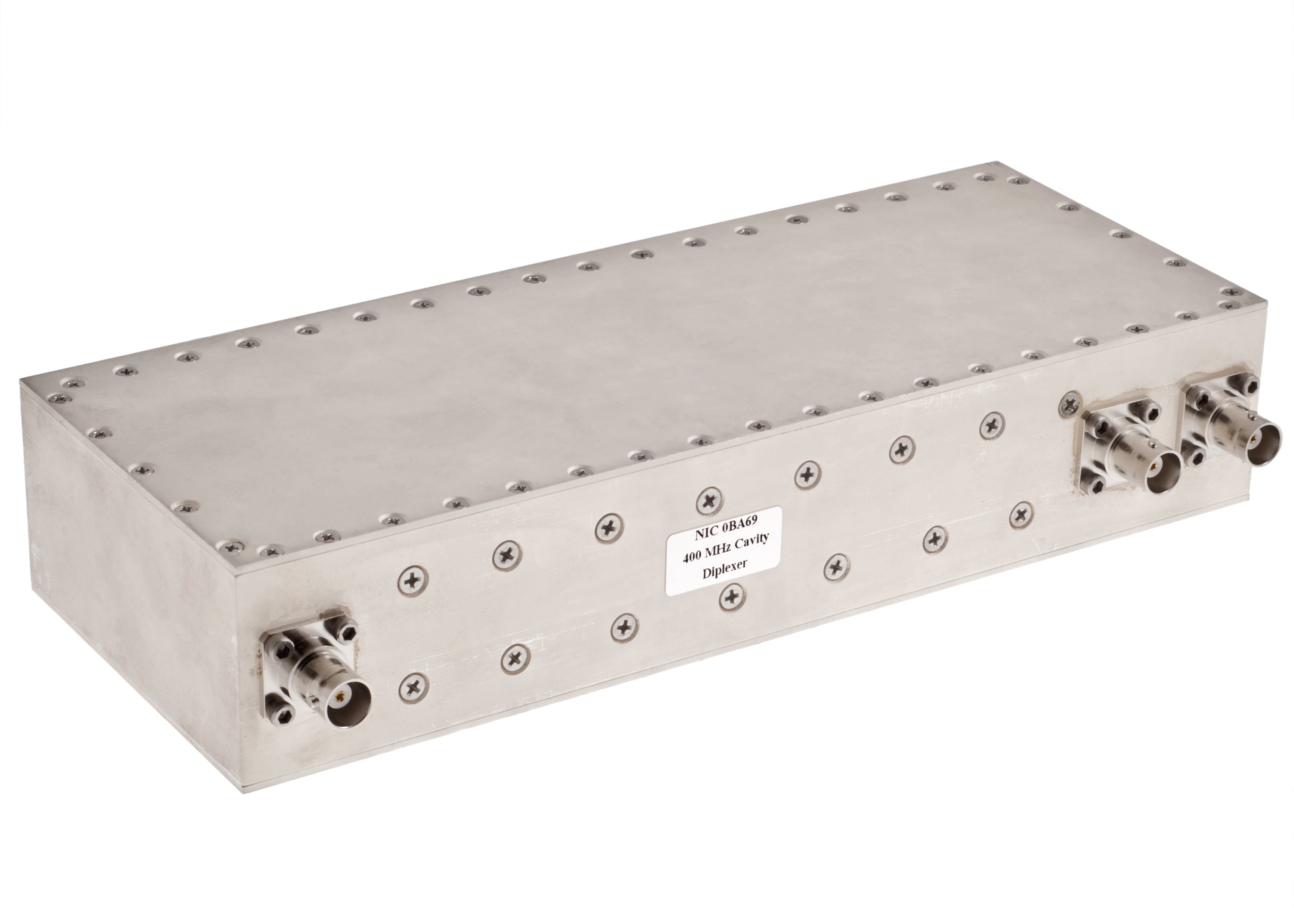

| 400-500 MHz Ruggedized Cavity Diplexer | Diplexer | Band1: 455.5 MHz Band2: 499.5 MHz | Band1: 33 MHz Band2: 23 MHz | BNC | 9.0 x 3.59 x 1.75 inches + BNC | High-Isolation and small channel separation | VIEW | REQUEST | SHARE |

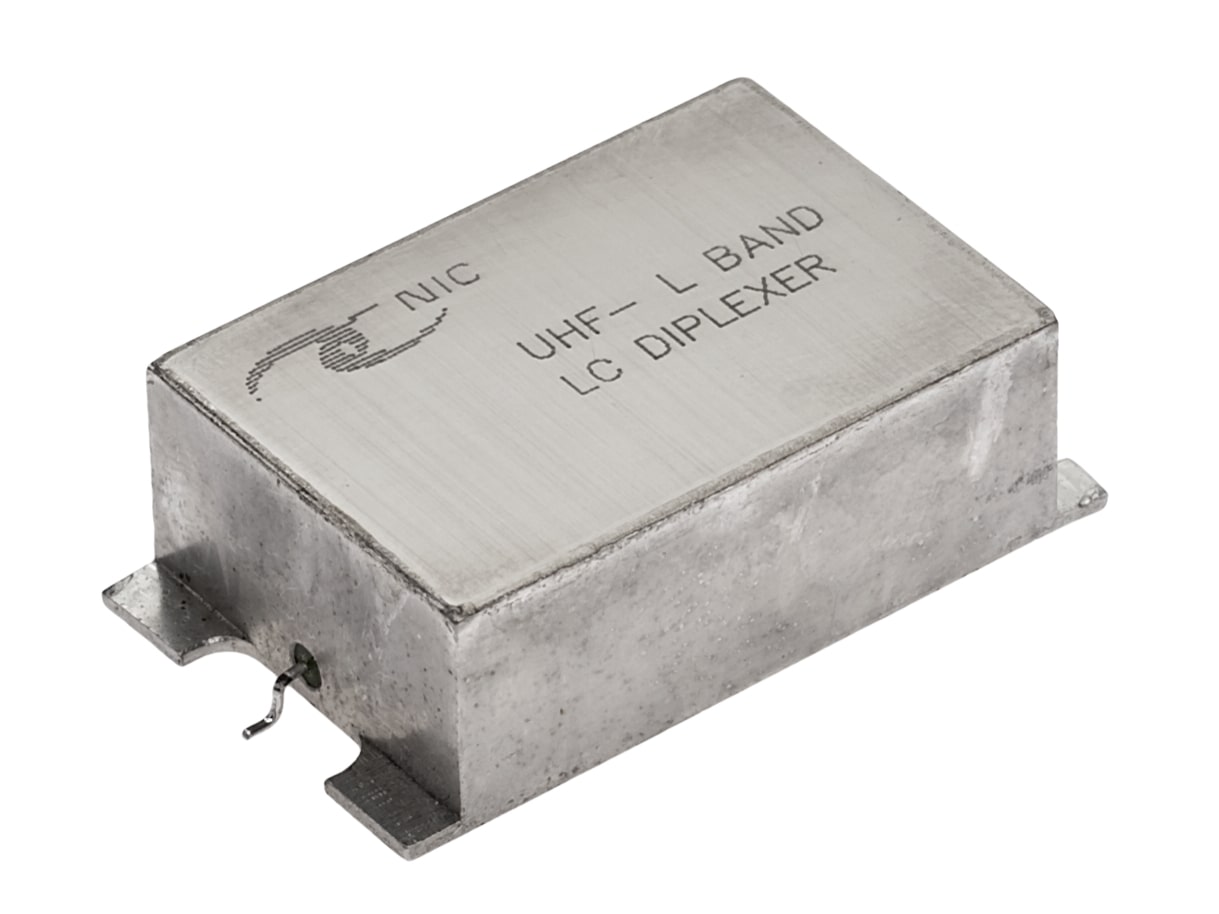

| 823 - 961 MHz / 1709 -2171 MHz LC Diplexer | Diplexer | Band1: 892 MHz Band2: 1940 MHz | Band1: 138 MHz Band2: 462 MHz | SMA Hermetic | 1.50 x 2.0 x 0.90 inches + sma | Ruggedized for ground, air-borne and ship-mount applications | VIEW | REQUEST | SHARE |
| LTE Band 14 Ceramic Duplexer | Duplexer | Band1: 763 MHz Band2: 793 MHz | Band1: 10 MHz Band2: 10 MHz | SMT | 42.0 x 18.5 x 9.5 mm (1.65 x 0.73 x 0.374 inches) | LTE 700 MHz Band for Public Safety Applications | VIEW | REQUEST | SHARE |
| S Band Cavity Diplexer | Diplexer | Band1: 2072.5 MHz Band2: 2250 MHz | Band1: 95 MHz Band2: 100 MHz | SMT | 3.89 X 2.99 X 1.14 inches + SMA | High Power | VIEW | REQUEST | SHARE |
| LTE Band Cavity Triplexer | Triplexer | Band1: 707 MHz Band2: 743 MHz Band3: 782.5 MHz | Band1: 18 MHz Band2: 30 MHz Band3: 11 MHz | SMA | 212 x 121 x 62 mm MAX (8.35 x 0.329 x 2.44 inches MAX) | LTE 700 MHz Band | VIEW | REQUEST | SHARE |
| 600-1000 MHz Terminated Diplexer | Diplexer | 800 MHz | 400 MHz | SMA Hermetic | 2.75 x 1.00 x 0.46 inches | Internally terminated Diplexer | VIEW | REQUEST | SHARE |
| Low-Profile DC-18 GHz Diplexer | Diplexer | Band 1: DC - 100 MHz Band 2: 425MHz - 18GHz | Connectorized | 0.62 x 0.47 x 0.19 inches + connectors | Low Profile, Low Passband Flatness, Wideband Performance | VIEW | REQUEST | SHARE |
